nRF52832-MDK V2 IoT Development Kit

nRF52832-MDK V2 IoT Development Kit

Regular price $19.90 USD
Regular price $27.95 USD Sale price $19.90 USD
Save $8.05 Sold out
Shipping calculated at checkout.

Out of stock

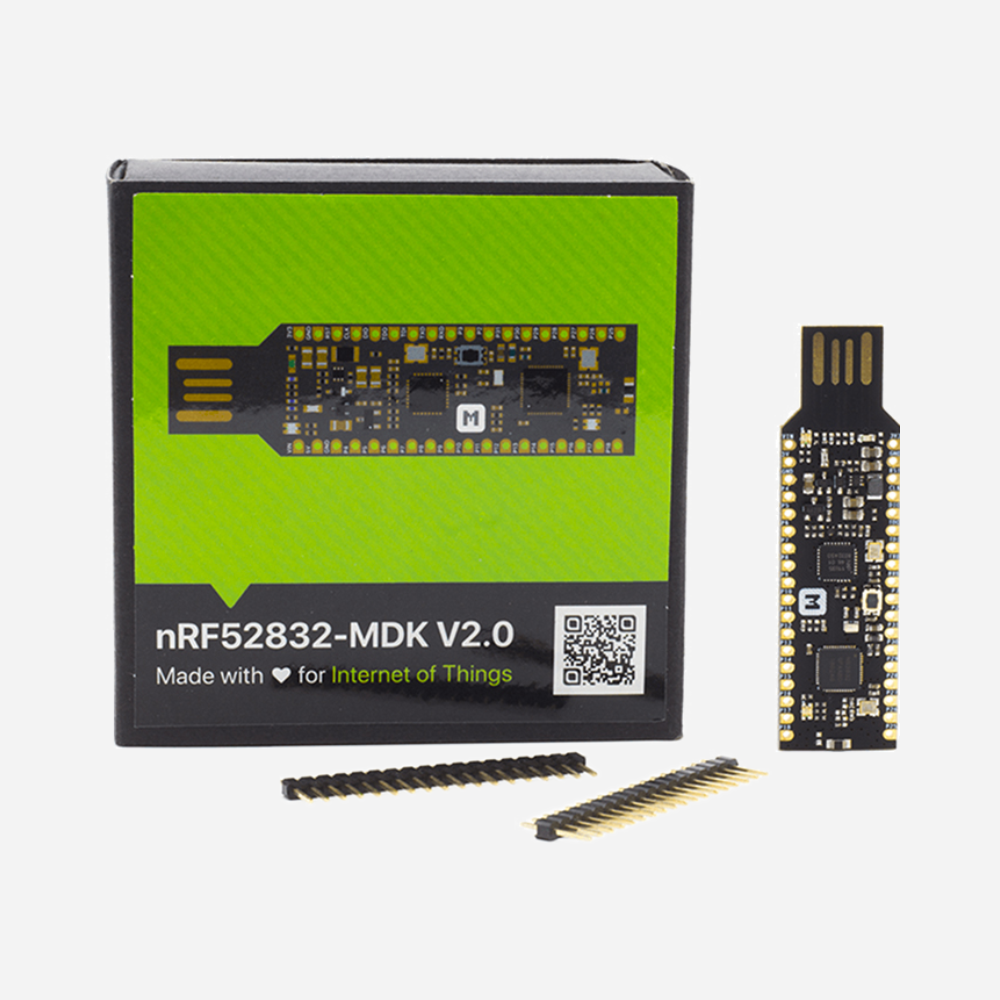

What’s in the Box

  • 1x nRF52832-MDK V2 board
  • 2x 18 Pin 2.54mm THT Pin Header

Dimensions & Weight

  • 63mm x 18mm / 2.48" x 0.71"
  • Height (w/o headers soldered in): 4.0mm
  • Weight: 14.0g
View full details

Description

The nRF52832-MDK V2 is a fully open-source, versatile single board development kit for Bluetooth® low energy, ANT and 2.4GHz proprietary applications using the nRF52832 SoC in a convenient USB dongle form factor.

The kit comes with a fully integrated debugger (also known as DAPLink) that provides USB drag-and-drop programming, USB Virtual COM port and CMSIS-DAP interface.

The kit gives access to 24 I/Os and interfaces via headers and has a programmable RGB LED. It also has a 2.4GHz chip antenna on-board which is quite convenient to develop IoT wireless applications.

The nRF52832-MDK V2 can be used to play with multi-frameworks such as: nRF5 SDK, nRF5 SDK for Mesh, Mbed OS 5, Zephyr, Mynewt, JerryScript, Espruino, MicroPython, Web Bluetooth, Eddystone, etc.

Hardware Features

  • Nordic Semiconductor nRF52832
    • ARM® Cortex™-M4F
    • 512kB Flash Memory + 64kB RAM
    • Bluetooth low energy, ANT and 2.4GHz
    • NFC™-A tag
    • Program/Debug options with DAPLink
      • MSC - drag-n-drop programming flash memory
      • CDC - virtual com port for log, trace and terminal emulation
      • HID - CMSIS-DAP compliant debug channel
      • Up to 24 GPIOs at headers
      • Reset Button
      • RGB LED
      • 2.4GHz chip antenna
      • 3.3V regulator with 1A peak current output
      • VBUS & VIN Power-Path Management
      • Breadboard-friendly
      • 63mm x 18mm x 4mm without headers soldered in

        Pinout Diagram

        nRF52832-MDK V2 Pinout

        Kit Contains

        • 1x nRF52832-MDK V2 Board
        • 2x 18 Pin 2.54mm THT Pin Header

        Documents
