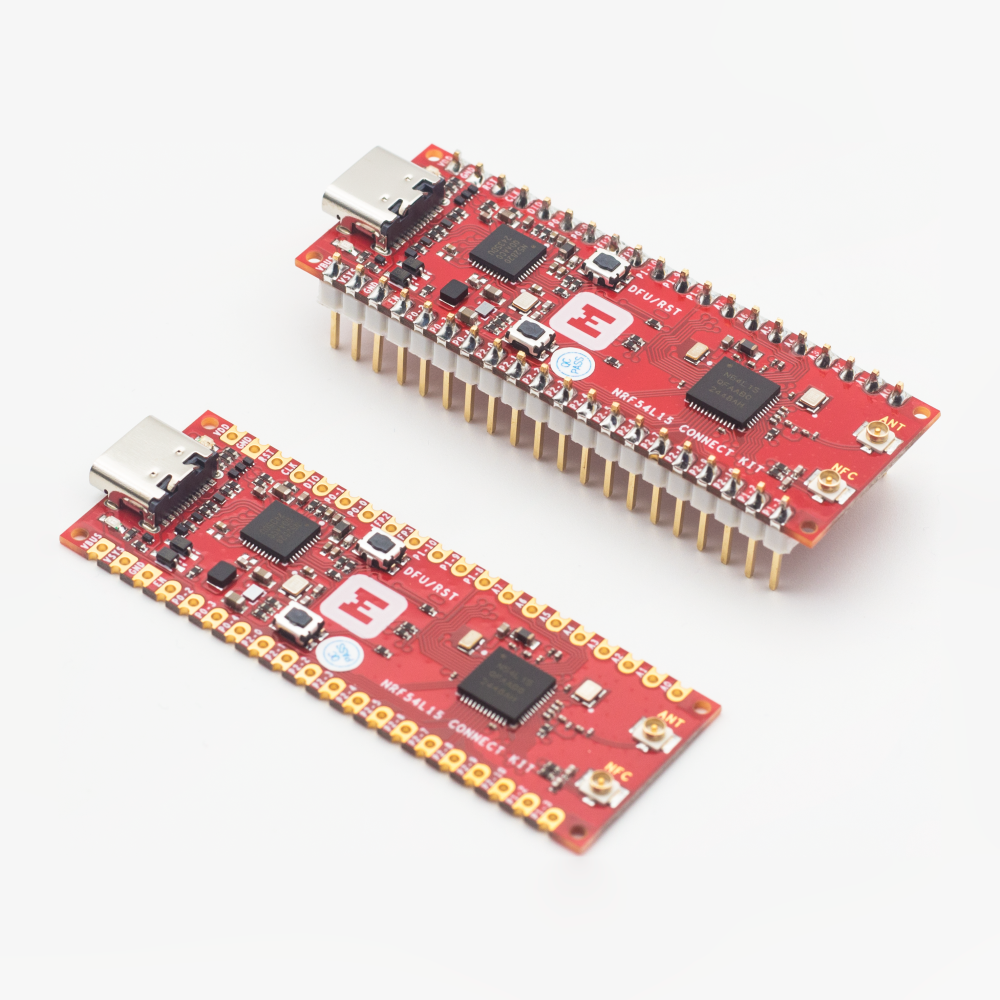

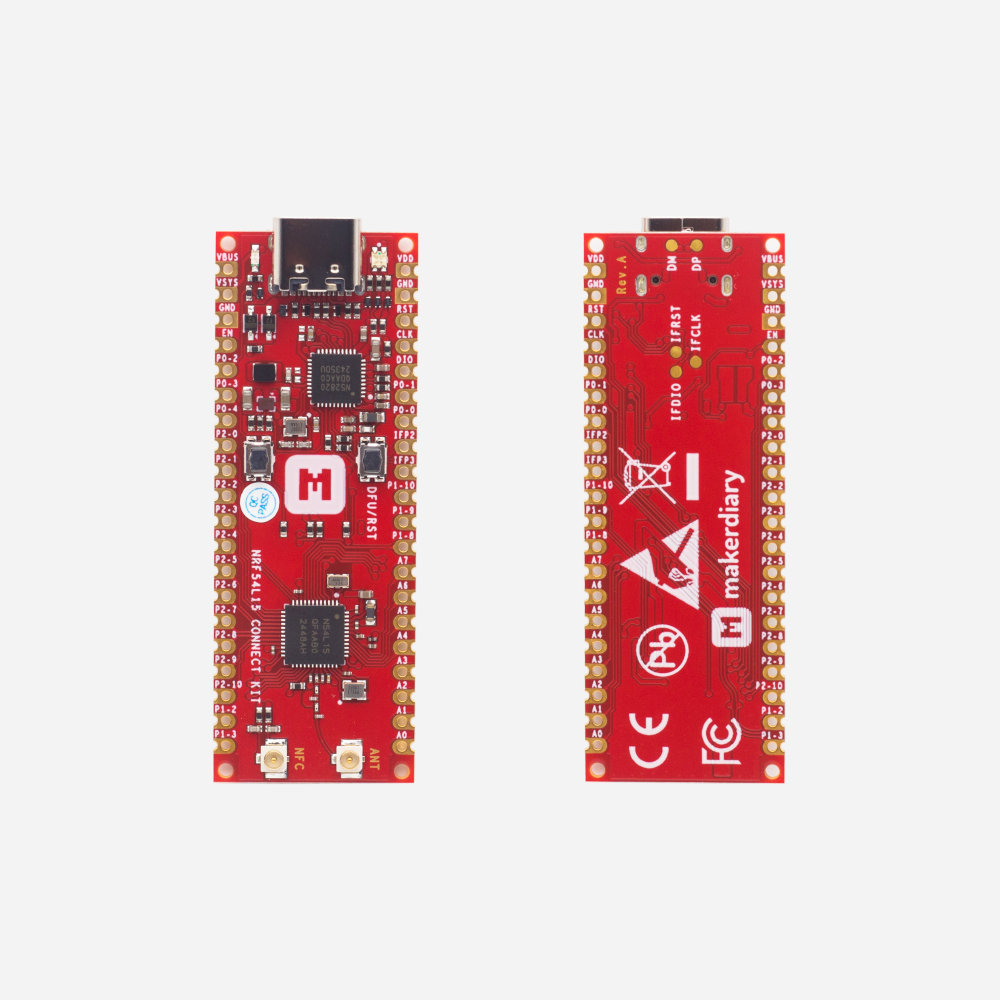

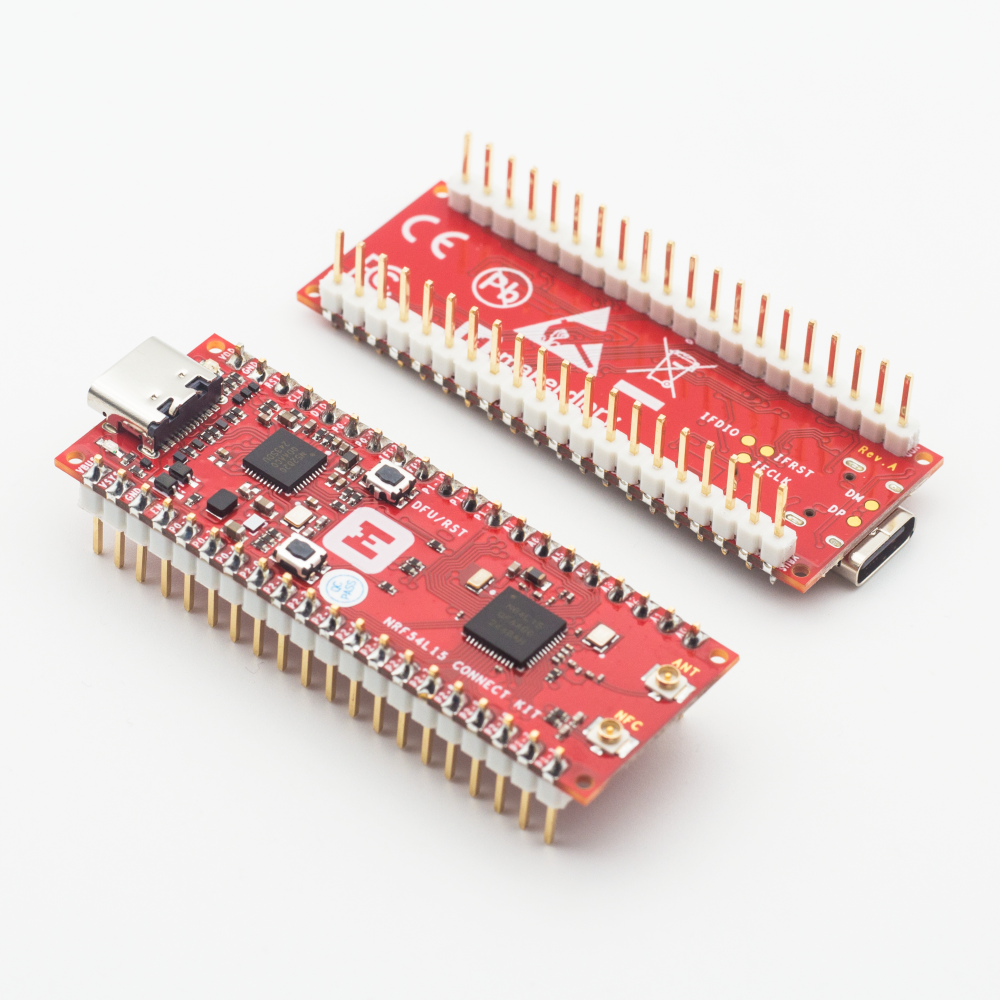

nRF54L15 Connect Kit

nRF54L15 Connect Kit

Accelerate Next-Gen IoT Prototyping with nRF54L15 Multiprotocol SoC

$21.90 USD
$21.90 USD
Save $-21.90 Sold out
Shipping calculated at checkout.
Header Options

In stock

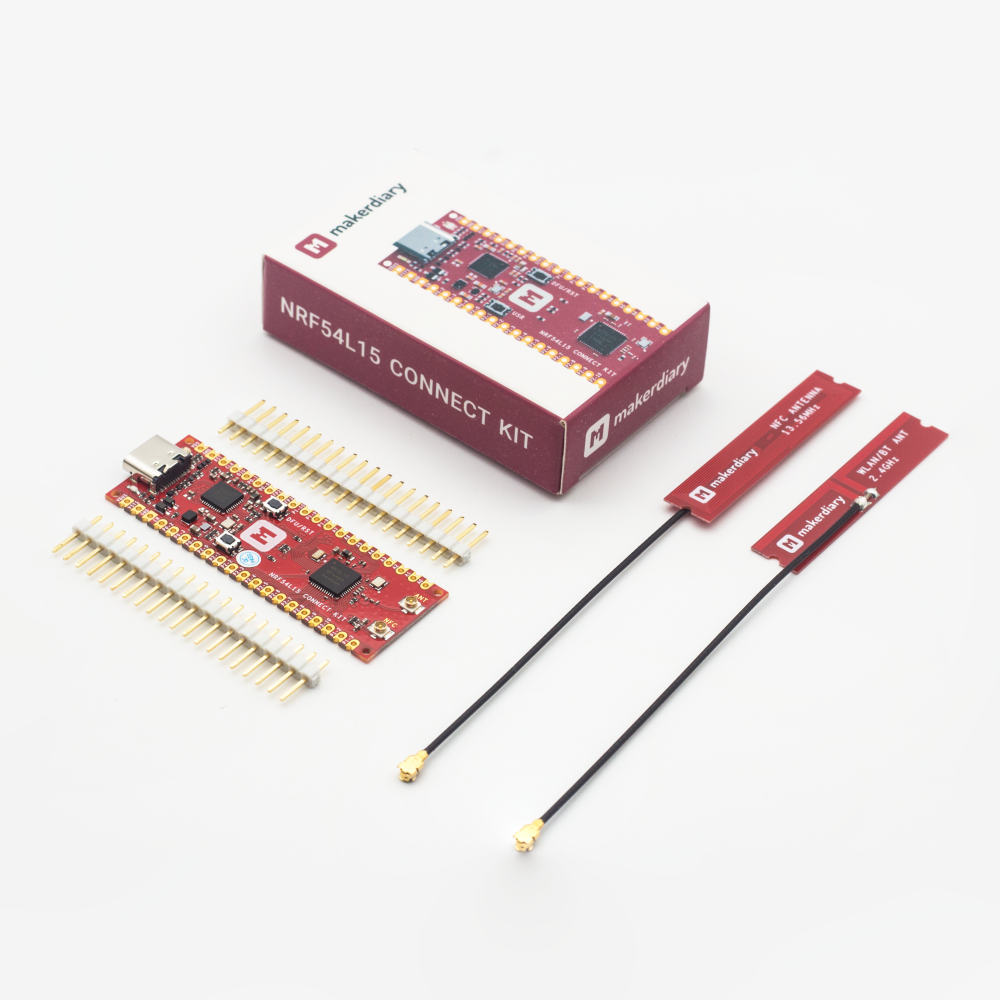

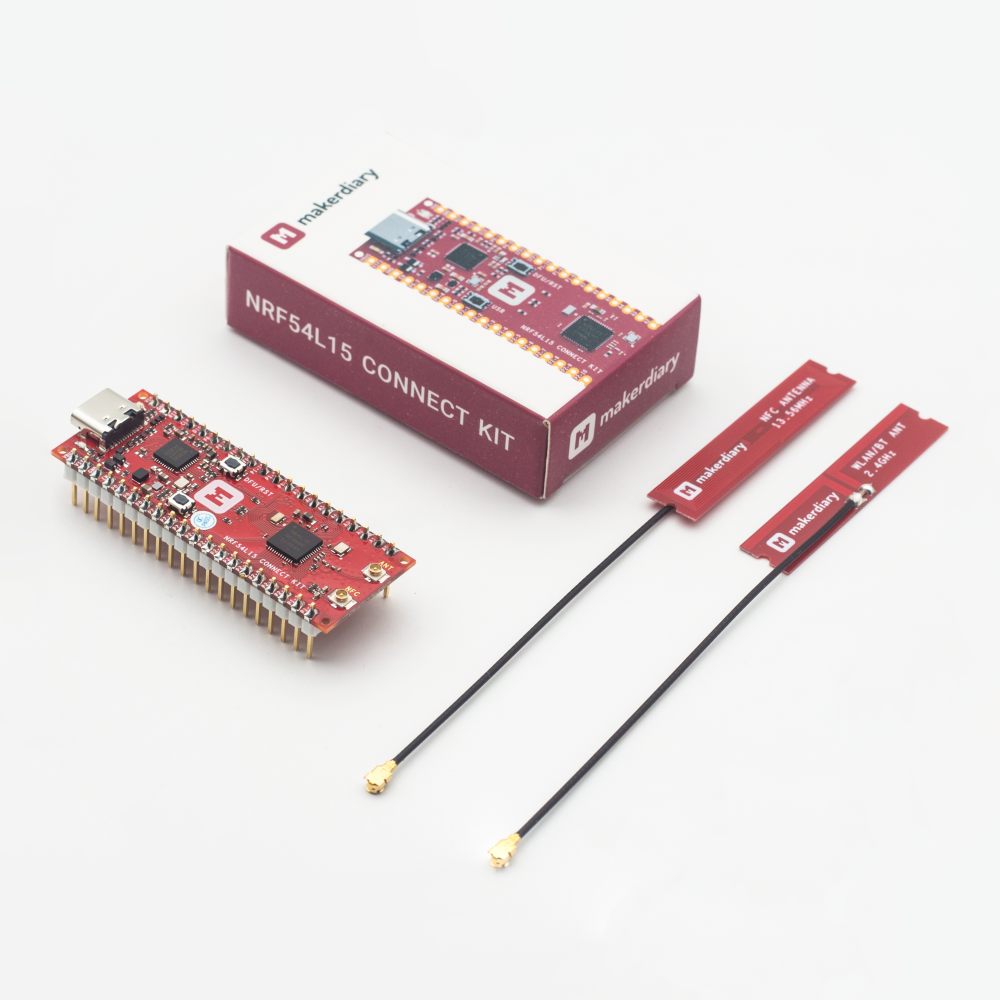

What's in the Box

  • 1x nRF54L15 Connect Kit Board
  • 1x U.FL cabled 2.4 GHz Antenna
  • 1x U.FL cabled 13.56 MHz NFC Antenna

Dimensions & Weight

  • 55.88mm x 20.32mm / 2.2" x 0.8". View details.
  • Height (w/o headers): 4.26 mm / 0.168"
  • Weight: 15g

Resources

View full details

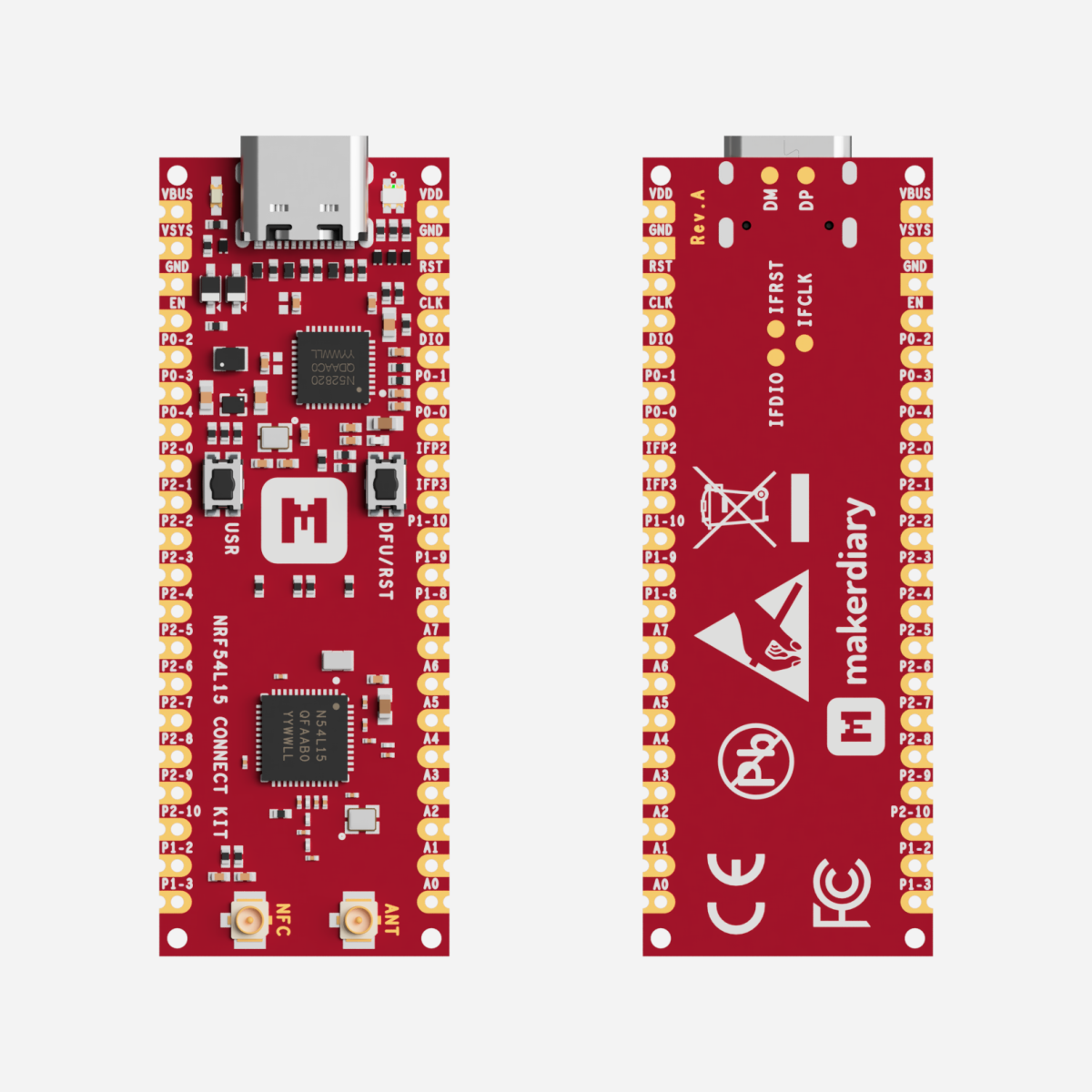

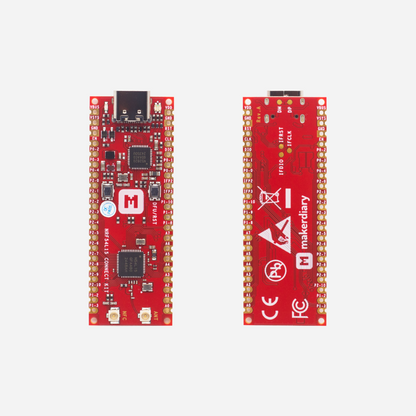

Rapid Prototyping Kit for Your Next-Gen IoT Devices

Powered by the nRF54L15 SoC, featuring Bluetooth LE 6.0, Thread®, Matter, Zigbee®, 4 Mbps 2.4GHz, NFC, Interface MCU, Easy-to-use Form Factor and nRF Connect SDK support

Key Features

  • Powered by nRF54L15 SoC

    128 MHz Arm Cortex®-M33 + RISC-V

    1.5 MB NVM + 256 KB RAM

    Bluetooth Low Energy 6.0, Thread®, Matter, Zigbee®, 4 Mbps 2.4GHz and NFC

  • On-board Interface MCU

    Designed with nRF52820 SoC

    Built-in CMSIS-DAP Debugging

    USB-UART Bridge for Logging

    Interface Shell for Setup

  • Easy-to-use Form Factor

    USB-C, LEDs and Buttons

    U.FL Cabled Antennas

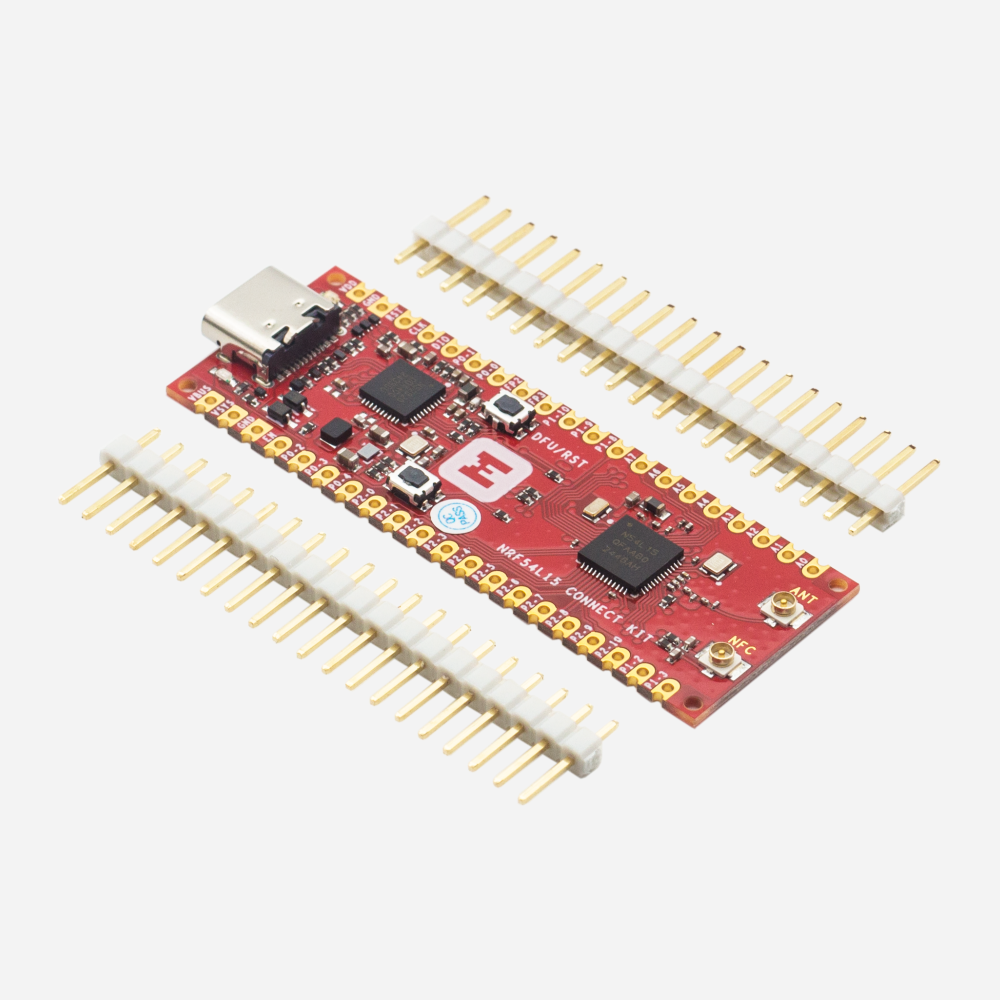

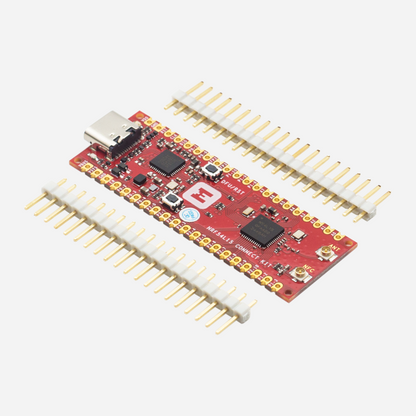

    Dual-row 40 Pins in DIP/SMT

    55.88mm x 20.32mm (2.2" x 0.8")

  • Flexible Power Management

    Various Power Supply Options

    TPS63901 Buck-boost Converter

    1.8V/3.3V Configurable I/O Supply

    Ultra Low Quiescent Current

  • Built on Open Source

    nRF Connect SDK Support

    Based on Zephyr RTOS

    Out-of-the-Box Applications & Samples

    Open Source Community

  • Well Documented

    Online Documentation

    Quick Start Guide

    Programming Guide

    Advanced Developer Guide
Discover more

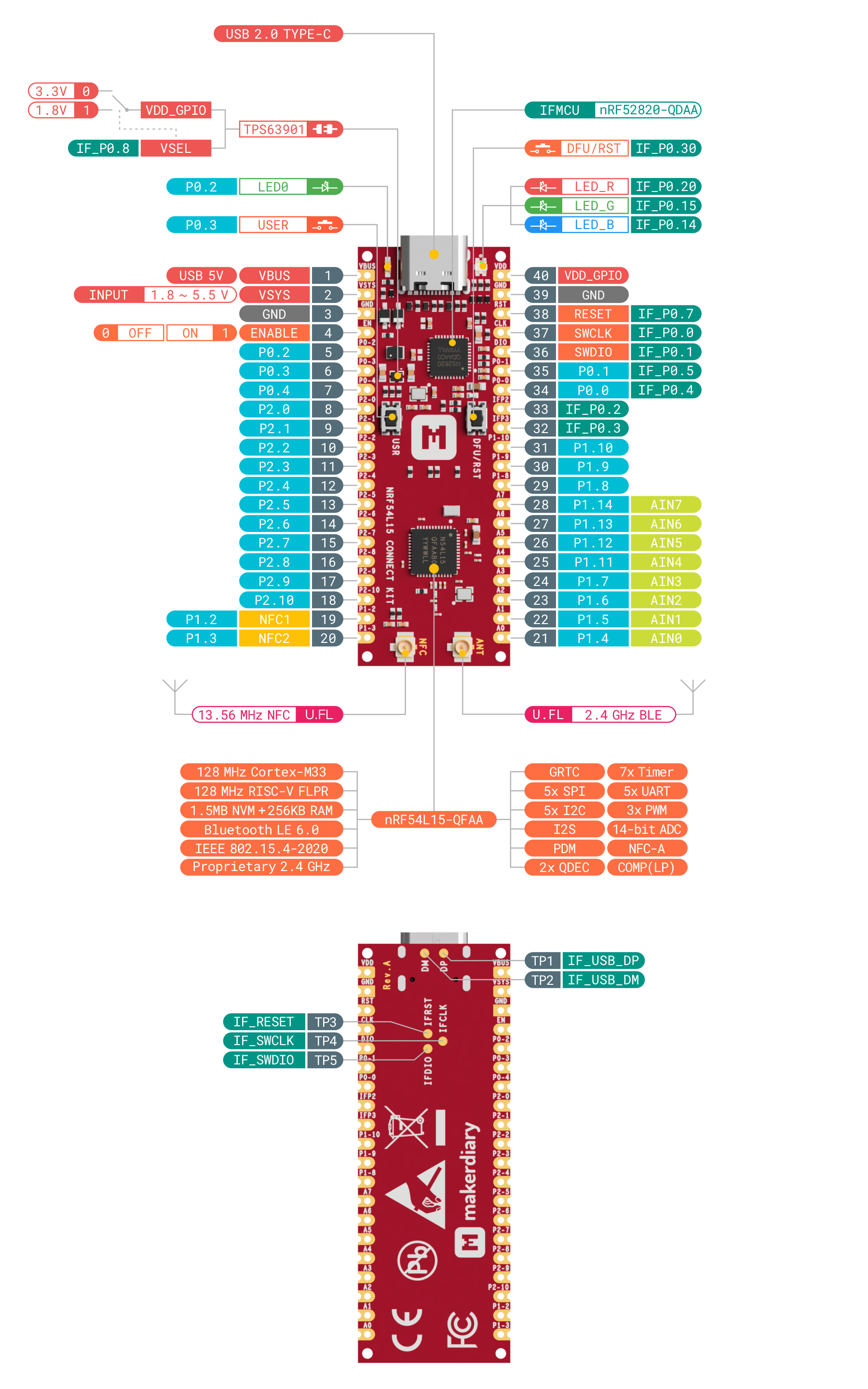

Hardware Diagram

Download PDF

Get Started in Minutes

  • Quick Start Guide

    Navigate you through the process of starting up your nRF54L15 Connect Kit

    Start

  • Develop with nRF Connect SDK

    Comprehensive Guide to Cellular IoT Development with nRF Connect SDK

    Start Building

  • Programming Guide

    Step-by-Step Guide to Updating nRF54L15 and Interface MCU Firmware

    Learn More

  • Hardware Description

    Detailed Description of the nRF54L15 Connect Kit Hardware Components

    Discover

  • Source Code

    Get Inspired by Application Examples and Build Your Own

    View Code

  • Community Support

    Join the Open Source Community: Share, Contribute and Get Support

    Get Involved
Explore docs

What's New

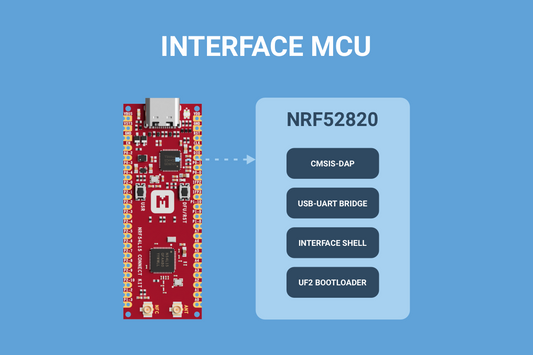

  • Introducing Interface MCU

    Introducing Interface MCU

    The Interface MCU enables onboard debugging and programming, eliminating the need for external tools, while enabling access to board-specific features.

    Introducing Interface MCU

    The Interface MCU enables onboard debugging and programming, eliminating the need for external tools, while enabling access to board-specific features.

  • Introducing nRF Connect SDK

    Introducing nRF Connect SDK

    nRF Connect SDK is a scalable and unified software development kit for building low-power wireless applications based on the Nordic Semiconductor wireless devices.

    Introducing nRF Connect SDK

    nRF Connect SDK is a scalable and unified software development kit for building low-power wireless applications based on the Nordic Semiconductor wireless devices.

  • nRF54L15 Connect Kit Now Available

    nRF54L15 Connect Kit Now Available

    Today, we’re thrilled to launch the nRF54L15 Connect Kit, enabling developers to harness the advanced capabilities of Nordic’s nRF54L15 SoC for cutting-edge IoT designs.

    nRF54L15 Connect Kit Now Available

    Today, we’re thrilled to launch the nRF54L15 Connect Kit, enabling developers to harness the advanced capabilities of Nordic’s nRF54L15 SoC for cutting-edge IoT designs.
